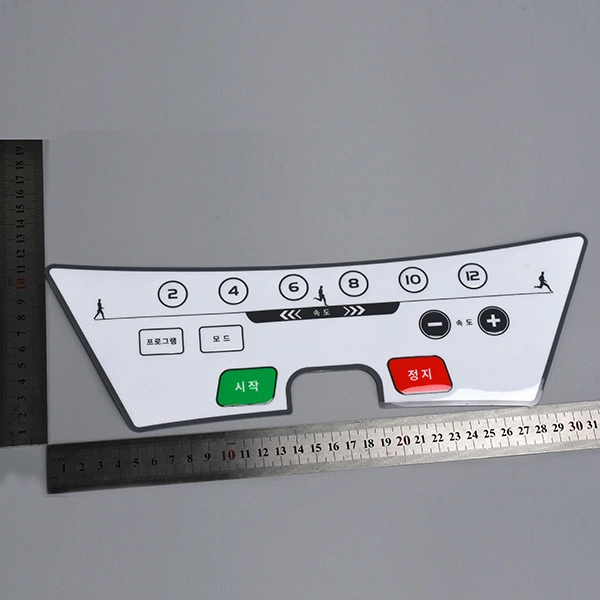

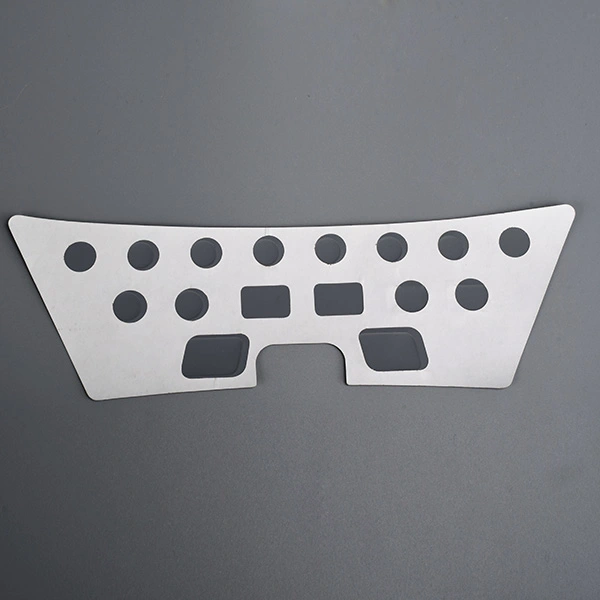

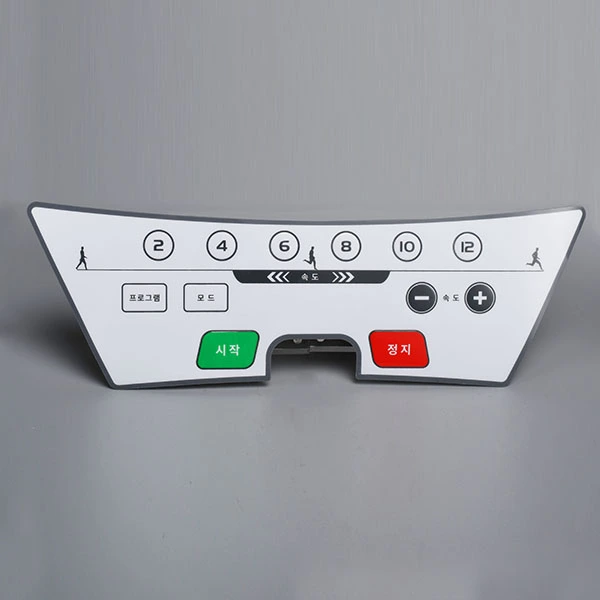

Minghong Technology Push Button Keypad Switch Panel is a customized switch panel that supports up to 20 momentary button switches and multiple combinations. Each switch is equipped with a three color LED status indicator light. Minghong Technology has an impressive supply capacity of over 180000 pieces per month.

Send Inquiry
Product Description

Minghong Technology's Push Button Keypad Switch Panel is a high quality product that has many advantages over traditional polyester film switches. This film switch is made of PET material and is known for its high durability and flexibility. It is very suitable for high demand applications such as medical equipment, automotive applications, consumer goods, and industrial applications.

Detail:

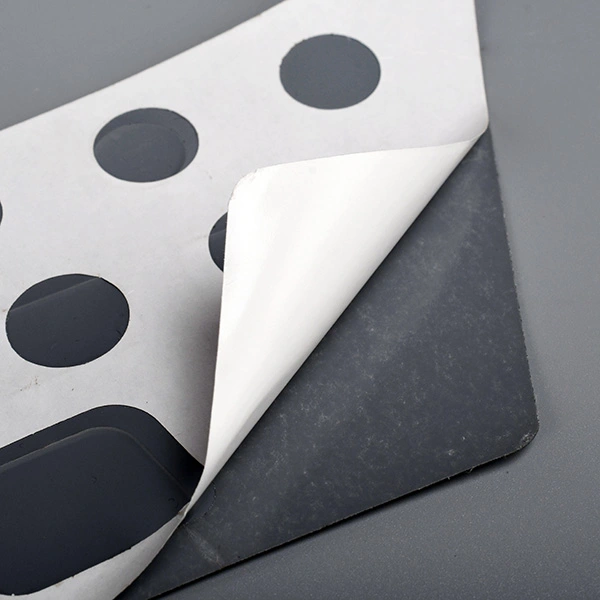

Material PET, PC, PVC, acrylic, stainless steel, aluminum 3M adhesive and so on
Technology Silk screen printing, UV printing, stamping, laser cutting, CNC carving
Thickness 0.1-8mm
Color Transparent, white, glossy, brushed, matt, colorful
Performance Plastic:72H temperature test -20℃∽+60℃
metal:24H salt spray test, 72H temperature test -20℃∽+100℃
Holding force test:100H with weight 500g
Scope Household appliances, furniture, car, electric bicycle, digital products, bath products, mechanical equipment etc
Delivery date Sample time:7-15days Production time:10-15days for MOQ 1000pcs

Product Description:

The on/off status of the button is transmitted through the CAN bus at a frequency of 100Hz.

There are four independently controlled three color LED indicator lights behind each switch for displaying status.

The default identification value of each CAN packet is compatible with Cosworth's existing product line, including ECU and intelligent power management system (IPS32, IPS48).

The Push Button Keypad Switch Panel is suitable for various applications and can be customized according to the needs of any customer. They are constructed with PET material and can operate within a temperature range of -20 ℃ to+70 ℃, making them suitable for use in any environment. These switches are designed to give tactile response and pressure sensing, and can be used at AC250V voltage. Its size can be customized according to specific requirements and can withstand high humidity of 40 ℃ and 90% RH.

Each Push Button Keypad Switch Panel has button positions, and a single button or horizontal joystick can be installed at each position. In addition, larger vertical joysticks are also available, with one joystick replacing three single keys and the other joystick covering all five positions.

Application:

The Push Button Keypad Switch Panel is also suitable for harsh environments such as extreme temperatures and humidity. The membrane switch is highly reliable and can withstand high voltage and high current.

It has low contact resistance and can operate in a temperature range of -20 ° C to+70 ° C and humidity up to 40 ° C and 90% RH.

The company has passed ISO14001 and ISO9001 certification, with a minimum order quantity of 1 piece or more. We offer a variety of packaging options including cardboard boxes, bags, and pallets. The delivery time is 4-5 weeks, and the payment method is factory delivery (EXW).
